Solution de palpeurs TOFD ISO 22232-2 et ASTM E1065 utilisable en continue sur surface chaude jusqu'à 350°C sans aucun refroidissement, palpeurs haute sensibilité, signal stable, sabot à approche réduite, forte résistance à l'usure et compatible avec les scanners du marché. Permet d'inspecter sans arrêt de production, détection précoce des défauts, amélioration de la POD, HTHA, ....

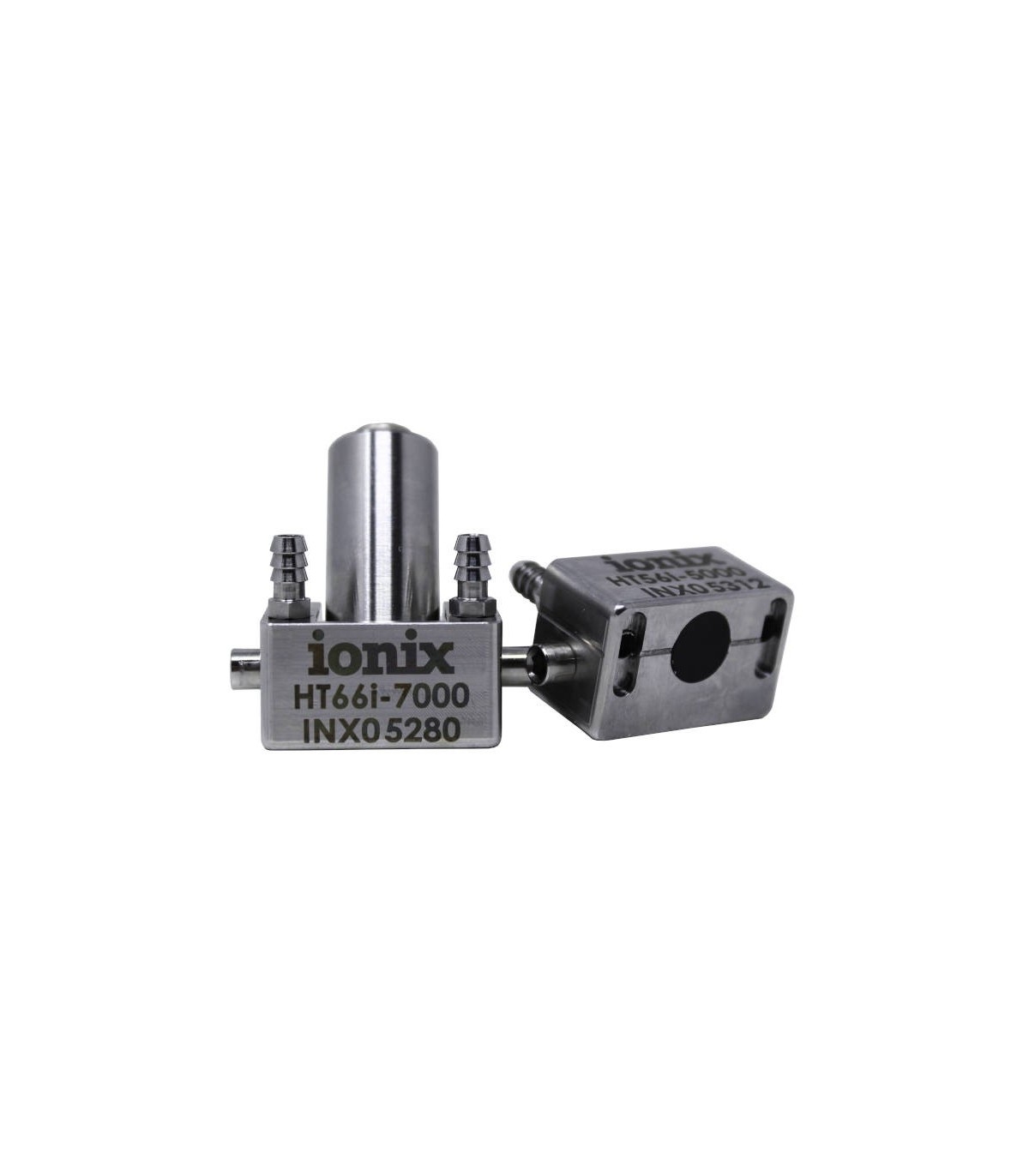

| HT66i-7000 | HotSense™ TOFD - 70 deg, 6 MHz 6mm crystal, with 5 mm pivot pins, couplant nozzles to fit 4-4.5 mm tube. Flat profile |
| HT56i-6000 | HotSense™ TOFD - 60 deg, 5 MHz 6mm crystal, with 5 mm pivot pins, couplant nozzles to fit 4-4.5 mm tube. Flat profile |
| HT56i-5000 | HotSense™ TOFD - 50 deg, 5 MHz 6mm crystal, with 5 mm pivot pins, couplant nozzles to fit 4-4.5 mm tube. Flat profile |
| HT66i-70**X | HotSense™ TOFD - 70 deg xx” profile wedge, 6MHz 6mm crystal, with 5mm pivot pins, couplant nozzles to fit 4-4.5mm tube. X = "define modification" |
| HT56i-60**X | HotSense™ TOFD - 60 deg xx” profile wedge, 5MHz 6mm crystal, with 5mm pivot pins, couplant nozzles to fit 4-4.5mm tube. X = "define modification" |
| HT56i-50**X | HotSense™ TOFD - 50 deg xx” profile wedge, 5MHz 6mm crystal, with 5mm pivot pins, couplant nozzles to fit 4-4.5mm tube. X = "define modification" |
| ACC-HT-001 | Y-splitter with tubing for couplant feed |
| ACC-HT-002 | HotSense™ TOFD - Protective Case with cutouts for 26 HotSense TOFD Probes, cables and accessories |
| ACC-HT-003 | HotSense™ TOFD Inspection Kit,Includes Probes with integrated wedges for 2x 50 deg 5MHz, 2x 60 deg 5MHz and 2x 70 deg 6MHz, Flat and Profiled to suit 8 inch, 12 inch and 16 inch NPS (Total 24 x probes with integrated wedges), 2 x HT Dual Cable 5.0 m, 4 x Y-splitter, 1 x Rugged Box Flat and Profiled to suit 8", 12" and 16" NPS (Total 24 x probes with integrated wedges), 2 x HT Dual Cable, 4 x Y-splitter, 1 x Rugged Box |
| ACC-HT-005 | HotSense TOFD Inspection Flat-profile kit, Incl. Probes with integrated wedges with 2X 50deg 5MHz, 2X 60deg 5MHz and 2X 70deg 6MHz, flat profiled (Total 6 x Probes with integrated wedges), 2X HT Dual Cable (5m), 4X Y splitter, 1X Rugged Box |
| ACC-HT-006 | TOFD Demo Kit. Includes Probes with integrated wedges for 2x 60 deg 5MHz Flat Profile, 1 x HT Dual Cable 1.5 m, 1x TOFD Demo Block, 4 x Y-splitter, 1x HT Pumpable Couplant Sample, 1x A-Frame, 1xRugged Box |
